Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
รายละเอียดสินค้า
สถานที่กำเนิด: จีน
ชื่อแบรนด์: EXCAR
ได้รับการรับรอง: CE
หมายเลขรุ่น: A1H4
เอกสาร: Excar catalog.pdf
เงื่อนไขการชําระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: USD4100-6000 per unit
เวลาการส่งมอบ: 10-30 วัน
เงื่อนไขการชำระเงิน: แอล/C, ที/ที
สามารถในการผลิต: 10,000 ต่อปี

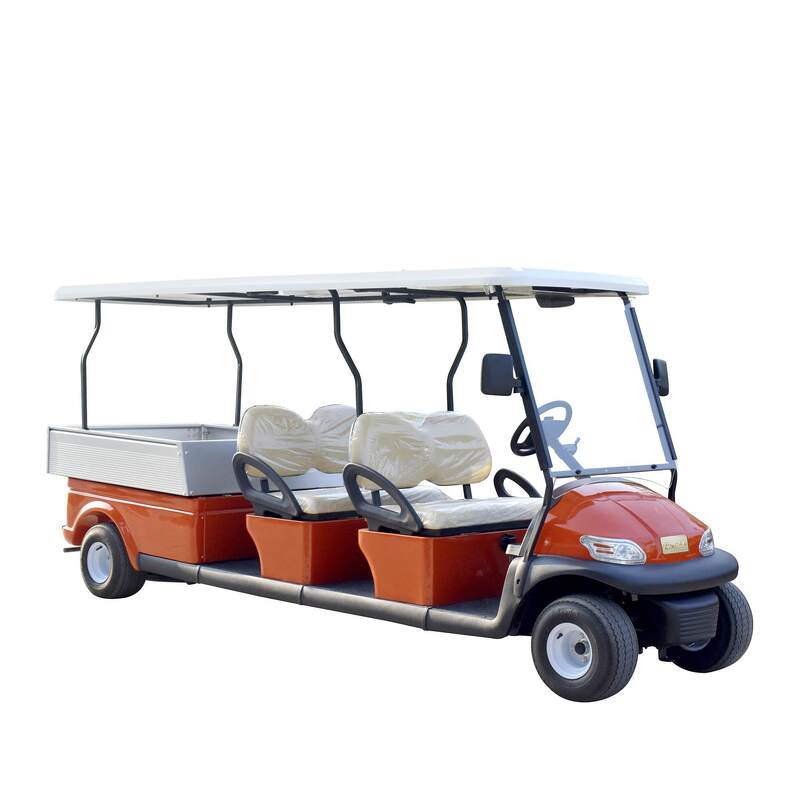

Excar model:A1H4
| DIMENSION | 4200×1200×1900 MM | PAYLOAD | 580 KG |
| F/R TRACK | 860/970 MM | CIMBING CAPACITY (FULL LOAD) | 25% |
| WHEELBASE | 3300 MM | CHASSIS | STEEL CHASSIS |
| GROUND CLEARANCE | 114 MM | BODY PANEL | PP ENGINEERING PLASTIC |
| MIN. TURNING RADIUS | 5.1 M | MAX. FORWARD SPEED | 35 KM/H |
| NET WEIGHT | 590 KG | RANGE | 60-80KM |
| CONFIGURATION(AC system) | |||
| MOTOR | MOTOR 48V 5KW | BRAKE SYSTEM | REAR SELF-ADJUSTING DRUM BRAKE |
| CONTROLLER | CURTIS 48V 350A / 400A | STEERING SYSTEM | DUAL SELF-ADJUSTING RACK & PINION |
| BATTERY | LEAD-ACID OR LITHIUM BATTERY | F/R SUSPENSION | MAPHERSON INDEPENT SPRING SUSPENSION |
| CHARGER | 48V 17A / 25A REGULATOR | TYRE | 205/50-10 TYRE |
Product advantage
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake or Four Wheels Disc Brake;
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the cart to fit your request;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6.What's your payment term?
T /T 30% deposit and balance paid before shipment.
Color Options
Rims Options
Seats Options
